APT

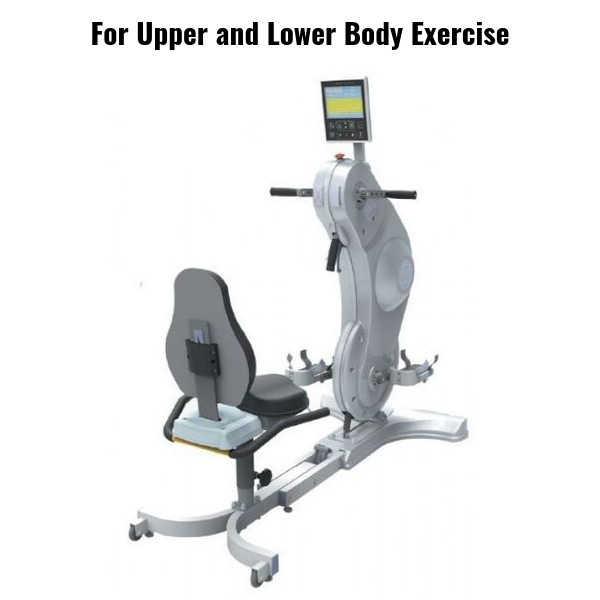

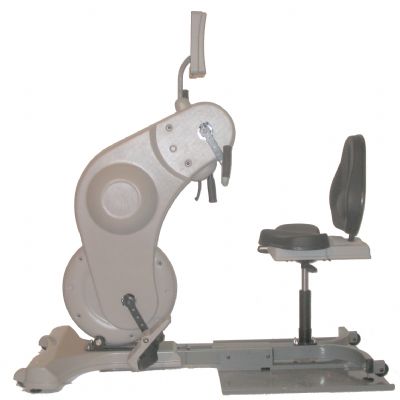

Active Passive Digital Trainer I-Motion
Quantity:
The Smart Active and Passive Trainer for Upper and Lower Body Exercise
- Challenging and benefiting at the same time, the i-Motion offers complete training for both upper and lower body, making it the ideal trainer for hospitals, rehabilitation centers and physiotherapy clinics.
- Maintain muscle strength and tone, flexibility, endurance and general fitness for users of all ages.
- Choose from multiple resistance levels.
- Patented drive resistance unit offers dynamic resistance/ speed ratio.
- Control display unit features multiple program levels with bio-feedback.
- Easy to adjust seat height and distance.
- Easily adjustable inclination for optimal exercise position.
- Ergonomic design.
- Wheelchair accessible with the available wheelchair platform.
- Easily portable! The i-Motion folds down for easy transportation.
- Maintain muscle strength and tone, flexibility, endurance and general fitness for users of all ages.
- Choose from multiple resistance levels.
- Patented drive resistance unit offers dynamic resistance/ speed ratio.
- Control display unit features multiple program levels with bio-feedback.
- Easy to adjust seat height and distance.
- Easily adjustable inclination for optimal exercise position.
- Ergonomic design.
- Wheelchair accessible with the available wheelchair platform.
- Easily portable! The i-Motion folds down for easy transportation.
The I-Motion have many benefits:
- Require minimal balance or coordination
- Can be used by people with walking and balance problems
- Modular design promotes ease of maintenance and service
Active and Passive Mode:
- 10 levels of resistance for Active exercising.
- 10 levels of speed for Passive exercising.
- Active training for upper and lower limbs.
- Adjustable crank-arm height and length.
- Improve blood circulation, strength endurance and muscle-tone.
- Learn the motoric of cycling.
- Activate rhythmical locomotion patterns.
Clinical Applications:
- The importance of training for Senior citizens- 10 levels of resistance for Active exercising.
- 10 levels of speed for Passive exercising.
- Active training for upper and lower limbs.
- Adjustable crank-arm height and length.
- Improve blood circulation, strength endurance and muscle-tone.
- Learn the motoric of cycling.
- Activate rhythmical locomotion patterns.
Clinical Applications:
- Rehabilitation for Orthopedic pathologies (partial weight bearing)
- Active and passive training for Children with motoric disorders
- Post traumatic brain damage
- APT training for Parkinson patients
- APT training for Multiple Sclerosis patients
- APT training for Post Polio Syndrome patients
- Post Cardiac Rehabilitation
Adjustable and Accessible:
- Seat assembly slides off allowing direct wheelchair access
- Easy to adjust seat height and distance
- Ergonomic design. The angle of the I-Motion body can be adjusted to provide maximum comfort for the user during exercises
- 4 positions for handgrips and footrests allowing varied radius of movement
- Easy to adjust seat height and distance
- Ergonomic design. The angle of the I-Motion body can be adjusted to provide maximum comfort for the user during exercises
- 4 positions for handgrips and footrests allowing varied radius of movement
- Parallel workout option
Specifications
Trainer | 44.5kg (98 lbs) |
Seat Assembly | 19.5kg (43 lbs) |
Wheelchair Platform (optional) | 11.5kg (25.5 lbs) |
Total Trainer Weight | 73.5kg (162 lbs) |
Power Supply | 1.4kg (3 lbs) |
Length | 150cm (59") |
Width | 74cm (29") |
Height | 150cm (59") |
Current Supply for Power Unit | 110/230 VAC |
Including |
Straight hand grip (pair) Footrest (pair) High support for footrest (pair) |
