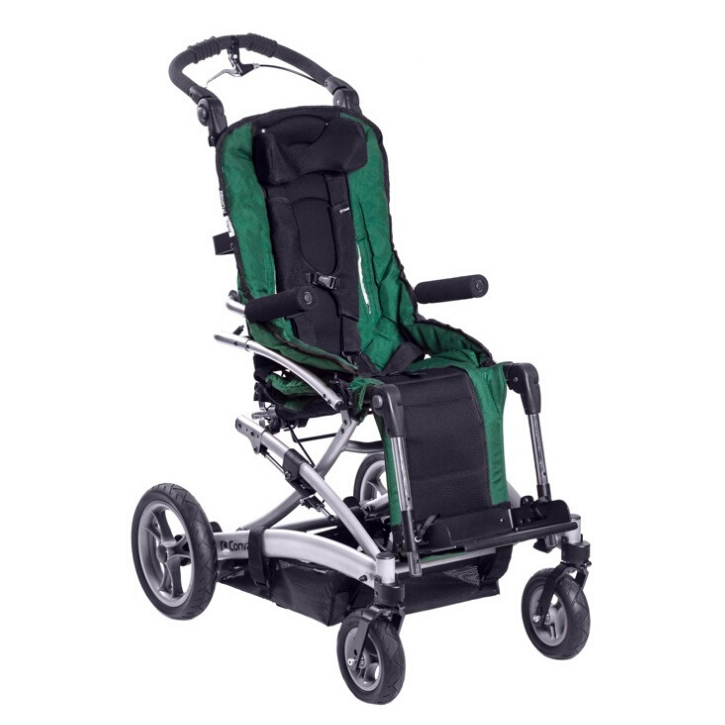

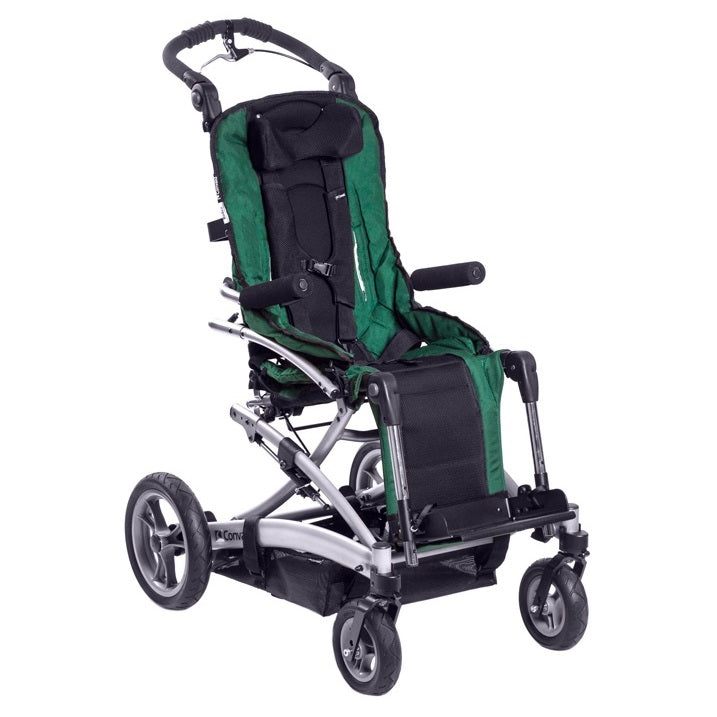

Convaid Rodeo Lightweight Tilt-In-Space and Positioning Paediatric Wheelchair
Convaid Rodeo
The leader in tilt-in-space, compact-folding, lightweight, and durable positioning systems, the Rodeo is perfect for someone who needs more involved positioning and support. The Convaid Rodeo is a popular pediatric tilt-in-space wheelchair that is best-in-class, convenient, lightweight and folds compactly.

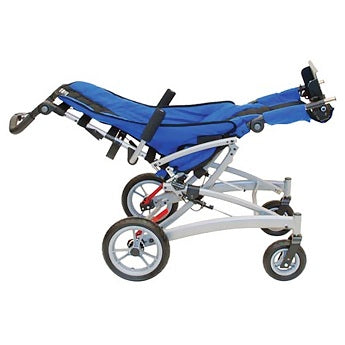

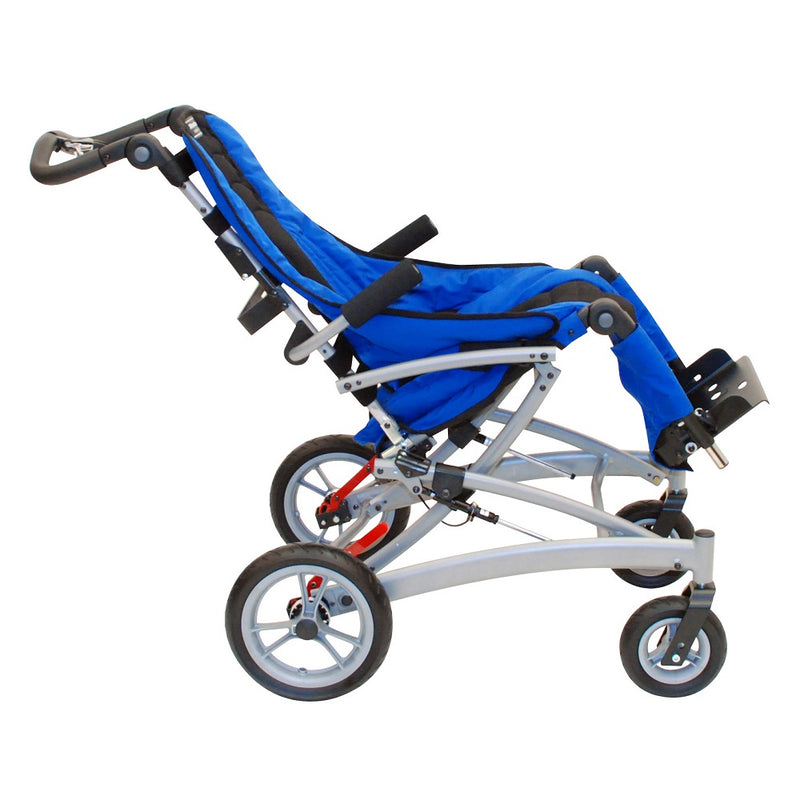

The Rodeo provides 5° to 45° of adjustable tilt that offers pressure relief and upper body support. This tilt-in-space Convaid is fully customizable to meet user’s specific therapeutic needs and provides 5 years of growth capability through its seat depth feature.
Tension adjustable back upholstery
Adjustable back straps allow for individual adjustment to the Lumber and Thoracic sections for the back.
Zippered pockets in upholstery
Allows for additional seat padding and support.
With 2 frame options available (with and without seating), the Rodeo is able to accommodate aftermarket and extensive seating needs.
Rodeo’s Cordura upholstery comes in a wide selection of colors and is removable and fully washable. The Rodeo offers 90 to 110° of recline, allowing variance in the seat-to-back angle. The Convaid Rodeo is easy to fold for maximal portability, available in sizes 10, 12, 14, and 16 for up to 170-lbs. It comes with a transit option that meets WC19 transport safety standards. It is attractive, highly durable, provides therapeutic necessities, comes with a lifetime guarantee and is made in the USA.
Optional Components

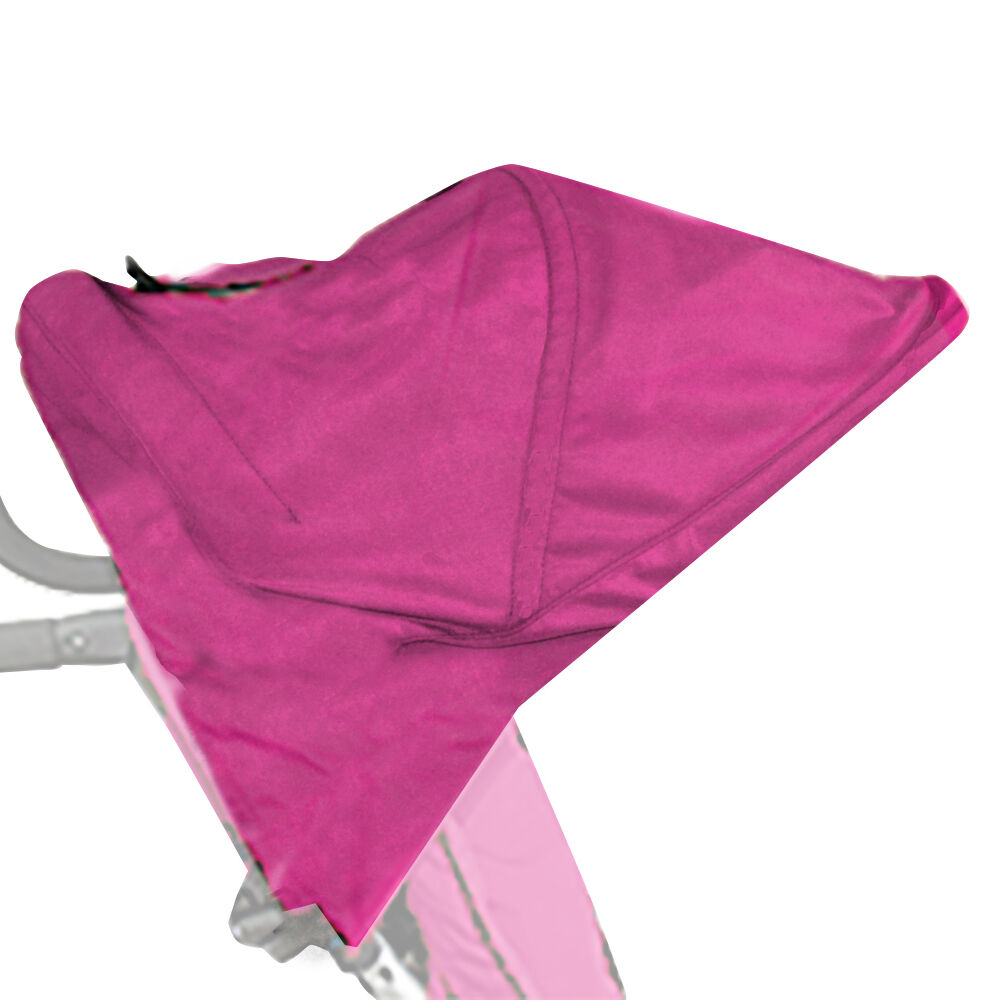

Headrest Cover (Canopy)

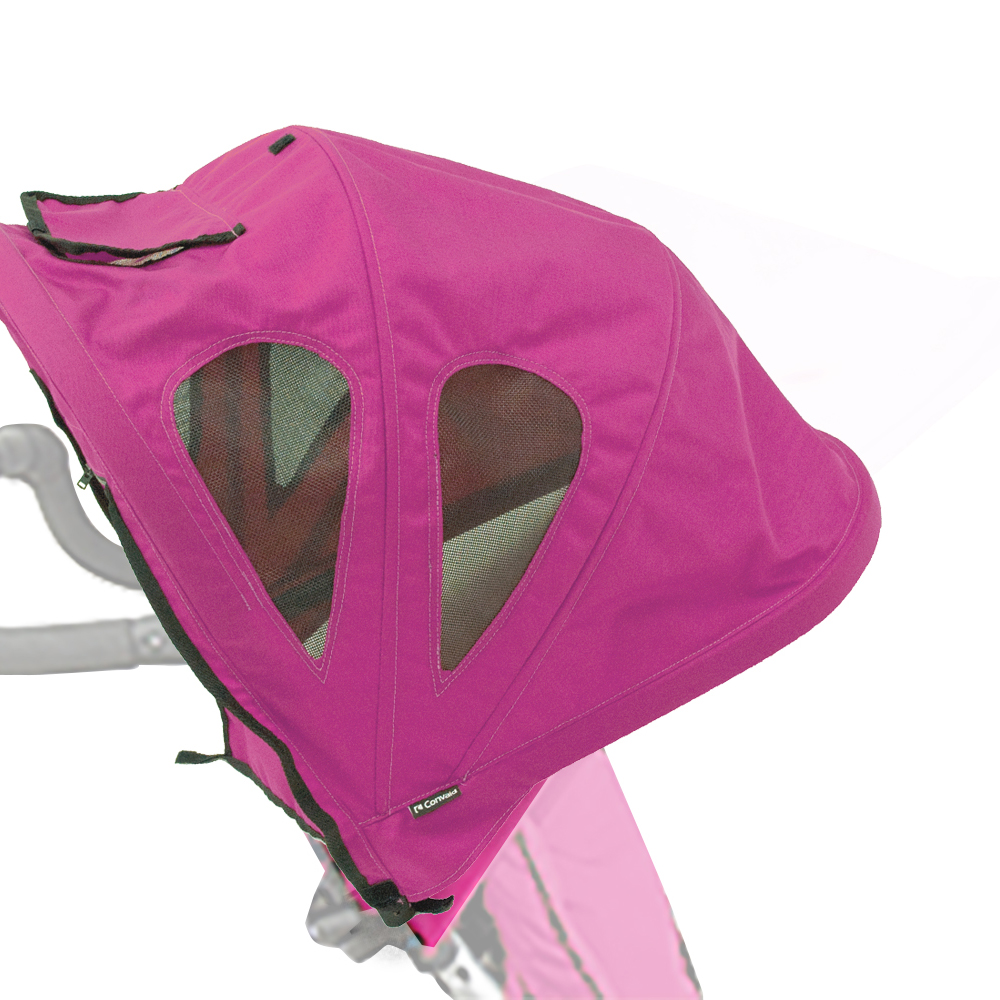

Extended Headrest Cover with Windows (Canopy)
Extended Headrest Cover without Windows (Canopy)
Headrest Extension
Occi-Headwings
Padded Headwings
Full Torso Vest
Adjustable Firm Lateral Trunk Support - Contoured (Swing-Away Laterals)
Reducer Seat Inset
H-Harness with Padded Covers (3-Pt Positioning Belt Req)
3-Point Positioning Belt
Support - General Use Cushion
Position Cushion - Medial Thigh Support / Anti Thrust

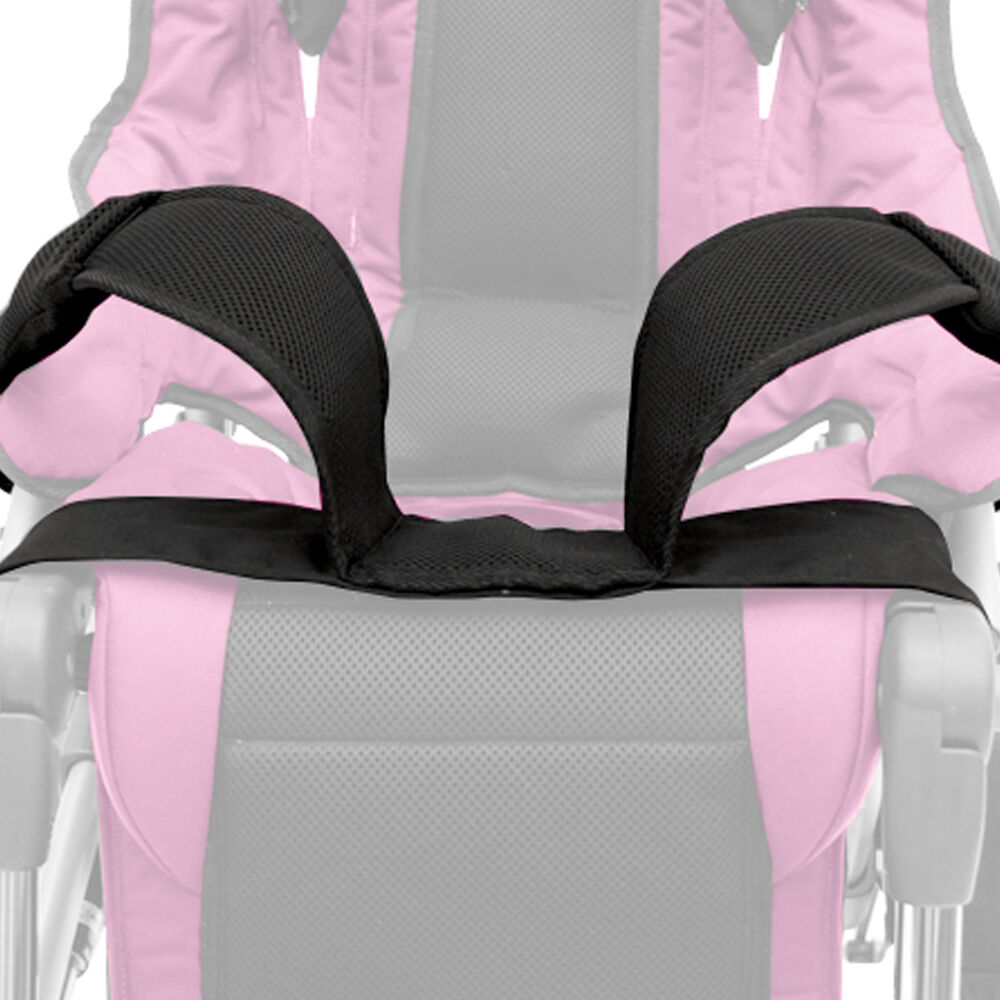

Medial Thigh Support (Abductor)
Lateral Thigh Support (Adductor)
Mesh Side Panels
Solid Side Panels
Upper Extremity Support Surface (Clear Tray)
Upper Extremity Support Surface (Foam Tray)
Mosquito Net
Rain Cover
Attendant Handbrake
IV Pole
Oxygen Tank Bag
Utility Bag
Under Seat Storage Basket - Tilt-In-Space
Medical Necessity Storage Basket

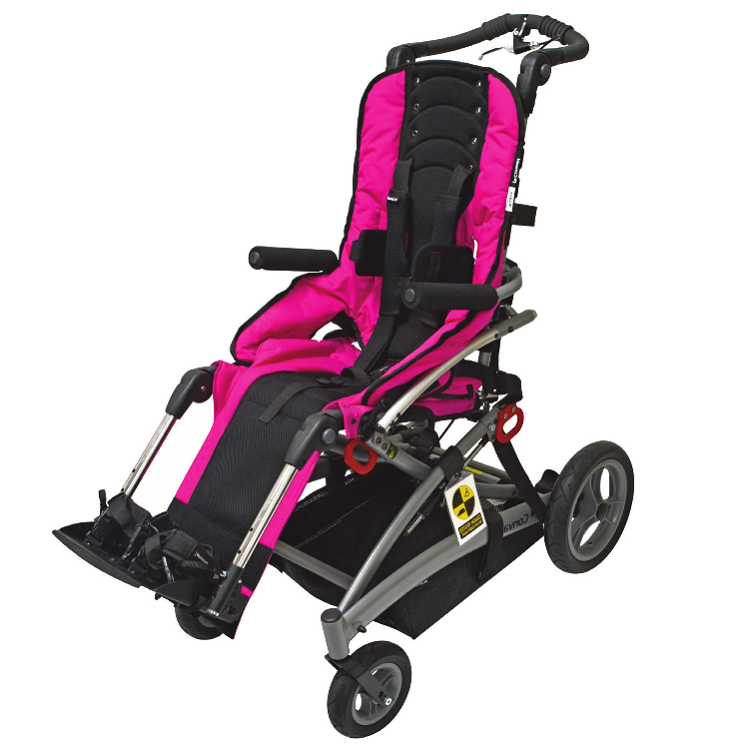

Padded Elevating Legrest Cover
Calf Panel
Foot Positioners
Full Padded Footbox
Caster Lock for 2" Wide Front Tires
Curb Tipper
Specifications
Click here for Convaid Rodeo specifications
| RD 10 | RD 12 | RD 14 | RD 16 | |
|
Seat Width *  |
10" (25.5cm) |
12" (30.5cm) |
14" (35.5cm) |
16" (40.5cm) |
Seat Depth* |
7" - 12" (18 - 30.5cm) |
9" - 14" (23 - 36cm) |
11" - 16" (28 - 41cm) |
13" - 18" (33 - 46cm) |
Seat Back Height
|
21" (53cm) |
22" (56cm) |
24" (61cm) |
25" (63.5cm) |
Seat to Floor |
20" (51cm) |
21" (53cm) |
22" (56cm) |
22" (56cm) |
Recline Adjustment  |
90° or 110° | 90° or 110° | 90° or 110° | 90° or 110° |
Tilt Adjustment |
5° - 45° | 5° - 45° | 5° - 45° | 5° - 45° |
Overall Height |
43" (109cm) |
43" (109cm) |
44" (112cm) |
45" (114cm) |
Overall Length |
30.5" (77.5cm) |
35" (89cm) |
35" (89cm) |
36' (91.5cm) |
Folded Length |
33.5" (85cm) |
34" (86cm) |
34" (86cm) |
40" (101.5cm) |
Folded Width  |
21" (53cm) |
23" (58.5cm) |
25" (63.5cm) |
27" (68.5cm) |
Folded Height |
17.5" (44.5cm) |
17" (43cm) |
18" (46cm) |
18" (46cm) |
Headrest Extension  |
6" (15cm) |
8" (20cm) |
8" (20cm) |
8" (20cm) |
Shoulder Strap Height |
13" - 19" (33 - 48cm) |
15" - 21" (38 - 53cm) |
16" - 22" (41 - 56cm) |
18" - 24" (46 - 61cm) |
Footplate Adjustment Angle ^ |
±20° | ±20° | ±20° | ±20° |
Seat to Footplate^ |
9" - 14" (23 - 36cm) |
9" - 14" (23 - 36cm) |
11" - 16" (28 - 41cm) |
13" - 18" (30.5 - 46cm) |
|
Seat to Footplate^ |
5.25" - 11.25" |
5.25" - 11.25" |
7.25" - 13.25" (18 - 34cm) ** |
9.25" - 15.25" (23.5 - 39cm) ** |
|
Seat to Footplate^^ |
n/a | 7" - 13" (18 - 33cm) |
9.5" - 15.5" (24 - 39.5cm) |
12" - 18" (30.5 - 46cm) |
|
Seat to Footplate^^
|
n/a | 4.5" - 9.25" (11.5 - 23.5cm) ** |
4.25" - 11" (11 - 28cm) ** |
7.25" - 13.25" (18.5 - 34cm) ** |
Weight Capacity Regular/Transit |
75/66 lbs (34/30kg) |
75/66 lbs (34/30kg) |
100/100 lbs (45.5/45.5kg) |
170/140 lbs (77/63.6kg) |
Weight of Chair ∆  |
29 lbs (13kg) |
33 lbs (15kg) |
37 lbs (17kg) |
39 lbs (18kg) |
Push Handle Adjustment  |
32" - 48.5" (81 - 123cm) |
34.5" - 51" (88 - 129cm) |
35" - 52" (89 - 132cm) |
36" - 53.5" (93 - 136cm) |
∆ Weight of chair is without front rigging
^ One-piece angle adjustable footplate (standard)
^^ Individual angle adjustable footplates (optional)
