Nissin UL30 Ultra Lightweight Folding Powerchair
Upholstery Colour:Red Dot
Quantity:
The frame is made of 7003 aerial aluminum alloy, integral curve design, U-shaped ellipse integrated pipe bending process, increase strength and beauty.

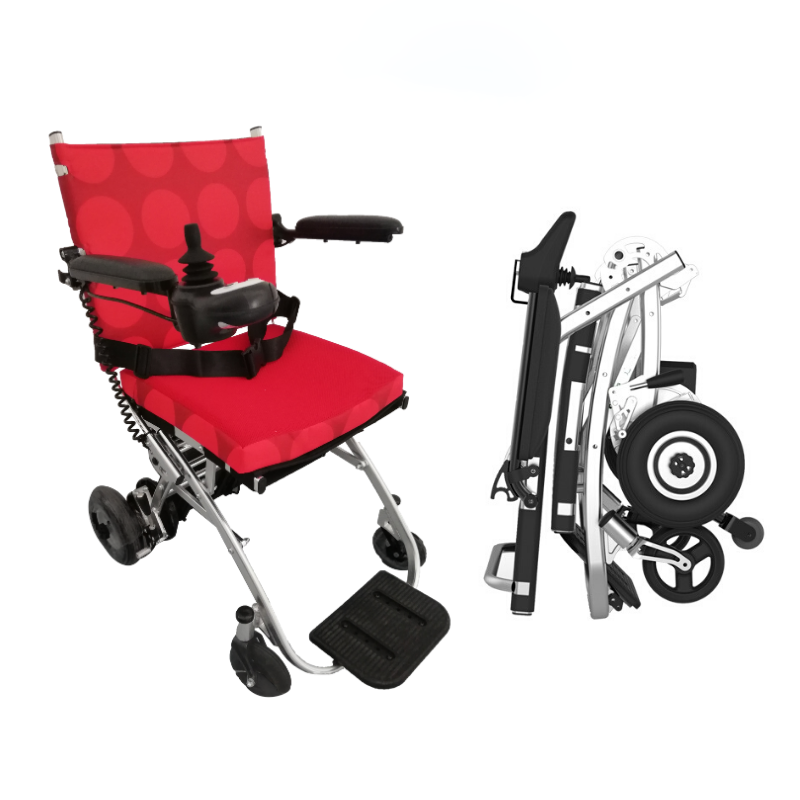

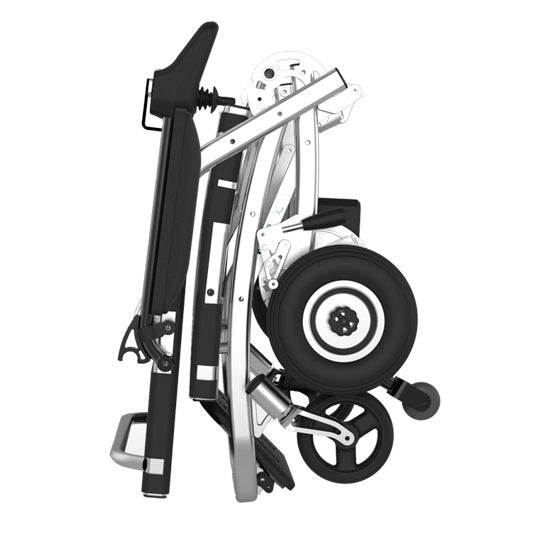

One button for folding, only 17kg, easy to carry and store.
Seat bending design prevents the body from moving forward and backward.
Battery charge 6 hours, cruising distance 15km, maximum speed 4.5km/h, detachable battery interchangeable use, travel without worry.
Two modes of charging:
1. After the battery is detached, it is charged through the interface on the battery;
2. After the battery no disassembly, it is charged through the lower interface of the controller.
Twisting button, simple switch for electric and manual, easier to push.
Flip-up armrest ,PP foam armrest,comfortable and environmental protection.
The pedals are retractable and do not occupy space.
Cover cushion, fabric breathable and comfortable, removable and easy to clean.
PU suspension universal wheels, the drive wheel adopts the non-inflatable PU tire.
The controller is free to move left and right, meet the needs of different people.
Flip-up armrest ,PP foam armrest,comfortable and environmental protection.
The pedals are retractable and do not occupy space.
Cover cushion, fabric breathable and comfortable, removable and easy to clean.
PU suspension universal wheels, the drive wheel adopts the non-inflatable PU tire.
The controller is free to move left and right, meet the needs of different people.
Comes with anti-tipper for safer driving.
Specifications
| Material | 7003 aerial aluminum alloy |
| Dimension (LxWxH) | 32.9"x22.3"x35.4" (83.5x56.5x90cm) |
| Folding Size (LxWxH) | 18"x22.3"x26.4" (46x56.5x67cm) |
| Seat Width | 15 1/4" (39cm) Armrest to armrest 17.5" (44.5cm) |
| Seat Depth | 15 1/4" (39cm) |
| Overall Width | 21.5" (54.5cm) |
| Front Seat Height | 20" (51cm) |
| Armrest Height | 9.5" (24cm) |
| Backrest Height | 15 1/4" (39cm) |
| Weight | 19.5kg (without battery) 20.9kg (with battery) |
| Weight Capacity | 100kg |
| Front Wheels | 7” x 1-3/4” (177.8mm x 44.45mm) |
| Rear Wheels | 8.5” x 1.96” (200mm x 50mm) |
| Maximum Speed | 4.5km/h |
| Static Stability | ≥ 9° |
| Dynamic Stability | ≥ 6° |
| Braking Performance | ≤100cm |
| Maximum Turning Radius | 80cm |
| Cruising Distance | 15km |
| Motor Voltage | 24V |
| Motor Power | 2x150W |
| Battery | 10.4Ah imported lithium battery |
| Battery Charging Time | ≈ 6 hours |
| Charger Power Supply | AC100-240V 50-60HZ |
| Charger Maximum Output | 2A |
| Joystick Maximum Output | 50A |
| Warranty |
1 year for battery, battery charger, motor, controller |
