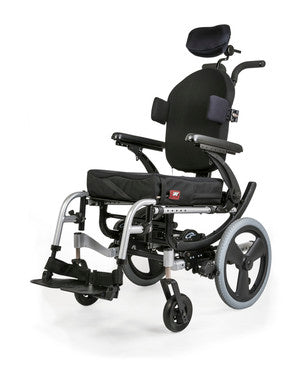

Quickie® IRIS® Tilt-In-Space Wheelchair
40° or 55° of Intelligent Rotation in Space Technology

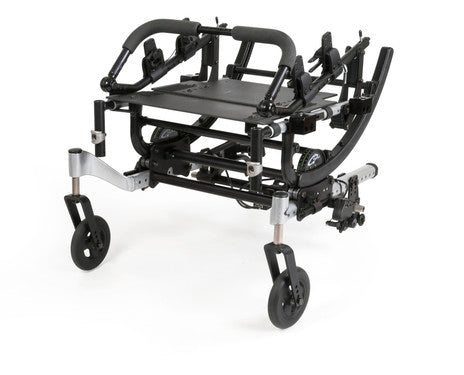

Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.
The Quickie IRIS now features a new Standard weight capacity of 300 lbs and Heavy Duty weight capacity of 400 lbs.
JAY Lower Extremity Support
The new JAY Lower Extremity Support option is fully integrated into the Quickie IRIS hanger mount. The swing in/out latch mechanism design makes changing hangers from the lower extremity support a very intuitive process.
Available in two pad sizes, the technology allows for vertical and horizontal angle adjustment to achieve the proper support for our clients' needs.

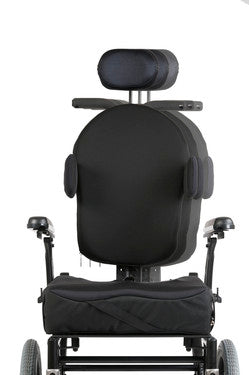

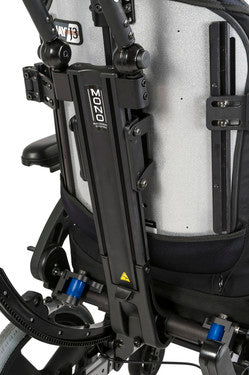

MONO Backrest System® Option
The MONO Backrest System's single-post offers limitless seating and positioning capabilities. By mounting the backrest to a single central post, the backrest and chair widths may be selected independently, hardware interference is eliminated to allow for infinite adjustment of lateral thoracic supports, and the backrest can achieve 2” of midline backrest offset.

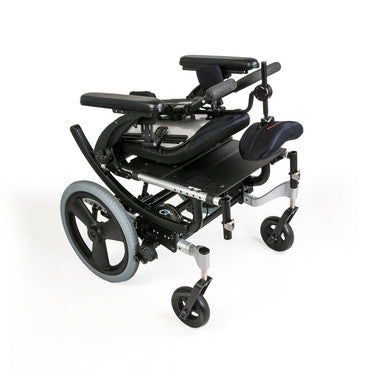

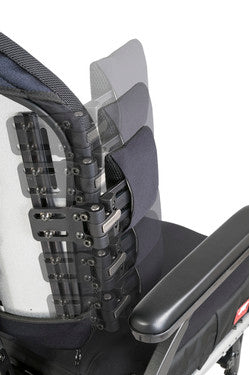

The MONO Backrest System offers an optional dynamic function, 35° angle adjustment, and folds forward for easy transport.

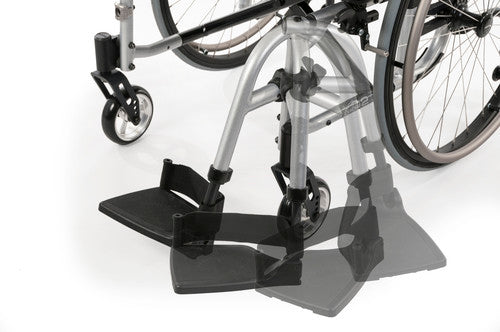

Intuitive Hanger Designs

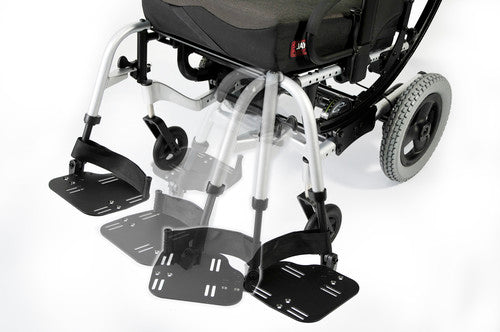

The IRIS's new swing-in/swing-out hanger design features an intuitive bi-directional release lever that follows your hand's movement. A tapered locking mechanism prevents the hanger from loosening over time.

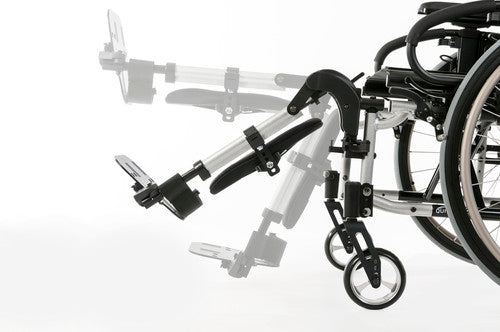

The Elevating/Articulating Legrest includes 2" of height adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated. The improved latch mechanism allows swapping between swing-in/swing-out hangers and ELR/ALR without additional hardware.
Specification
|
Model Number |
EIZ4-2 |
|
Frame Style |
Rotation-in-Space |
|
HCPCS Code |
E1161 |
|
Wheelchair Weight |
39 lbs. |
|
Frame Material |
Aluminum |
|
User Weight Capacity |
Standard: 300 lbs. Heavy Duty: 400 lbs. |
|
Transit Approved |
Yes |
|
Shipping Dimensions |
Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H Palletized: 47" L x 40" W x 54" H |
|
Average Shipping Weight |
Boxed: 90 lbs. and 15 lbs. Palletized: 150 lbs. |
|
FRAME AND FEATURE MEASUREMENTS |
|
|
Seat Widths |
14" to 22" |
|
Seat Depths |
14" to 22" |
|
Frame Angle |
N/A |
|
Front Seat-to-Floor Height |
12.5" to 19" |
|
Rear Seat-to-Floor Height |
12.5" to 19" |
|
Lower Leg Length Setting |
N/A |
|
Back Height |
15" to 21" or 18" to 24" |
|
Angle Adjustable Backrest Adjustment Range |
-30° to 5° |
|
Camber |
0° |
|
Center of Gravity (COG) Adjustment |
N/A |
|
Tilt Range |
40° 55° |
|
OPTIONS AND ACCESSORIES |
|
|
Frame Type |
Frame Options: Standard Heavy Duty Vent/Battery Base Tray Contrature Seat Frame Frame Struts: Fixed Width Adjustable |
|
Special Packages |
N/A |
|
Tilt Release Options |
Foot Release Backrest Dual Trigger |
|
Frame Inset |
N/A |
|
Caster Wheels |
4" x 1.25" Semi-Pneumatic 5" x 1" Polyurethane 5" x 1.5" Semi-Pneumatic 6" x 1" Polyurethane 6" x 1.5" Semi Pneumatic 8" x 1" Polyurethane 8" x 1.5" Semi-Pneumatic 8" x 2" Pneumatic 8" x 2" Pneumatic with Airless Insert |
|
Caster Options |
N/A |
|
Hangers |
60° Swing In/Out 70° Swing In/Out 80° Swing In/Out 70° Swing In/Out Front Mount 80° Swing In/Out Front Mount 90° Swing In/Out Front Mount 70° Heavy Duty Front Mount Lift-Off 80° Heavy Duty Front Mount Lift-Off 90° Heavy Duty Front Mount Lift-Off Elevating Hanger Front Mount Articulating Elevating Contracture |
|
Footplates |
Composite Composite Angle Adjustable Adult Angle Adjustable Kids Angle Adjustable Aluminum Platform Flip-up |
|
Footplate Options |
Neoprene Covers Heel Loops Toe Loops Leg strap Extension Tubes |
|
Axle |
Quick Release Threaded |
|
Axle Plate |
Standard One Arm Drive |
|
Rear Wheel Type |
12" Mag 16" Mag 20" Mag / 5 Spoke Mag 22" Mag / 5 Spoke Mag 24" Mag / 5 Spoke Mag 24" Spoke |
|
Rear Wheel Tire |
Pneumatic Pneumatic with Airless Insert Full Poly Low Poly |
|
Handrims |
Aluminum Anodized Plastic Coated |
|
Hub Lock |
12" or 16" |
|
Suspension |
N/A |
|
Backrest Type |
Fixed Height Adjustable Reclining Dynamic Mono Back J3 |
|
Back Post Options |
Adjustable Stroller Handles Removable Extension |
|
Backrest Options |
N/A |
|
Back Upholstery |
J3 |
|
Military Service Patches |
N/A |
|
Armrests |
Dual Post Height Adjustable Dual Post Flip Back Dual Post Dual Post Flip Back Height Adjustable Length Adjustable Locking Flip-Up Single Post Height Adjustable Adjustable Locking Flip-up |
|
Arm Pads |
Desk Length - Classic Desk Length - Contour Full Length - Classic Full Length - Contour Foam Ergo armpad |
|
Wheel Locks |
Push to Lock Attendant (Foot Lock) Optional Extension Handle |
|
Seating |
Standard Seat Pan Drop Seat Pan JAY Cushion |
|
Power Assist |
N/A |
|
Grade Aid |
N/A |
|
Anti-Tips |
Rear Anti-tips |
|
Side Guards |
Plastic Regular Plastic Kids |
|
Side Guard Options |
N/A |
|
Positioning Belts |
1.5" Auto Buckle 2" Aircraft Buckle 2" Padded Aircraft Buckle 2" Dual Pull Squeeze Pad |
|
Tray Tables |
Small Medium Large X-Large |
|
Accessories |
Quickie Backpack Seat Pouch Caddy O2 Holder IV Pole Clear Spoke Guards Black Spoke Guards Vent Tray for LTV Ventilators Vent Tray for Trilogy Ventilators JAY Lower Extremity S/A Support |
|
Frame Color Options |
Aztec Gold Black Black Cherry Black Opal Blue Opal Candy Blue Candy Purple Candy Red Electric Blue Evergreen Glow Green Apple Hot Sparkle Pink Mauve Pink Rootbeer Sparkle Silver Sunrise Orange Titanium Color Paint Yellow Matte Black Matte Black Cherry Matte Electric Blue Matte Evergreen Matte Purple Desert Camouflage Mossy Oak Camouflage Stars & Stripes Zebra |
|
Anodized Color Options |
N/A |
| Warranty | 5 years on frame, 1 year on components |
| Country of Origin | USA |
As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
